Details

2" Square Gate Frame to 4" Round Post Heavy-Duty Adjustable 180° Gate Hinge (Hot-Dip Galvanized Steel)

The 4" Round to 2" Square Adjustable Gate Hinge is designed for 4" posts that attach to a 2" square post. The hinge allows the gate to swing 180° from a closed position. This hot-dipped galvanized hinge is durable, rust-resistant, and withstand harsh environments for years to come. Generally, two hinges are installed for standard gates, but up to 4 gate hinges may be required for larger, heavier gates. The multi-purpose round-to-square hinge can be used both residentially or commercially and works excellent for double-drive gates and gated enclosures.

Features:

• Compatible With Chain Link Fence
• Swings Open Up To 180°
• Used For Double Gated Driveways and Trash Enclosures
• Rated For Commerical and Residential Use

Specifications:

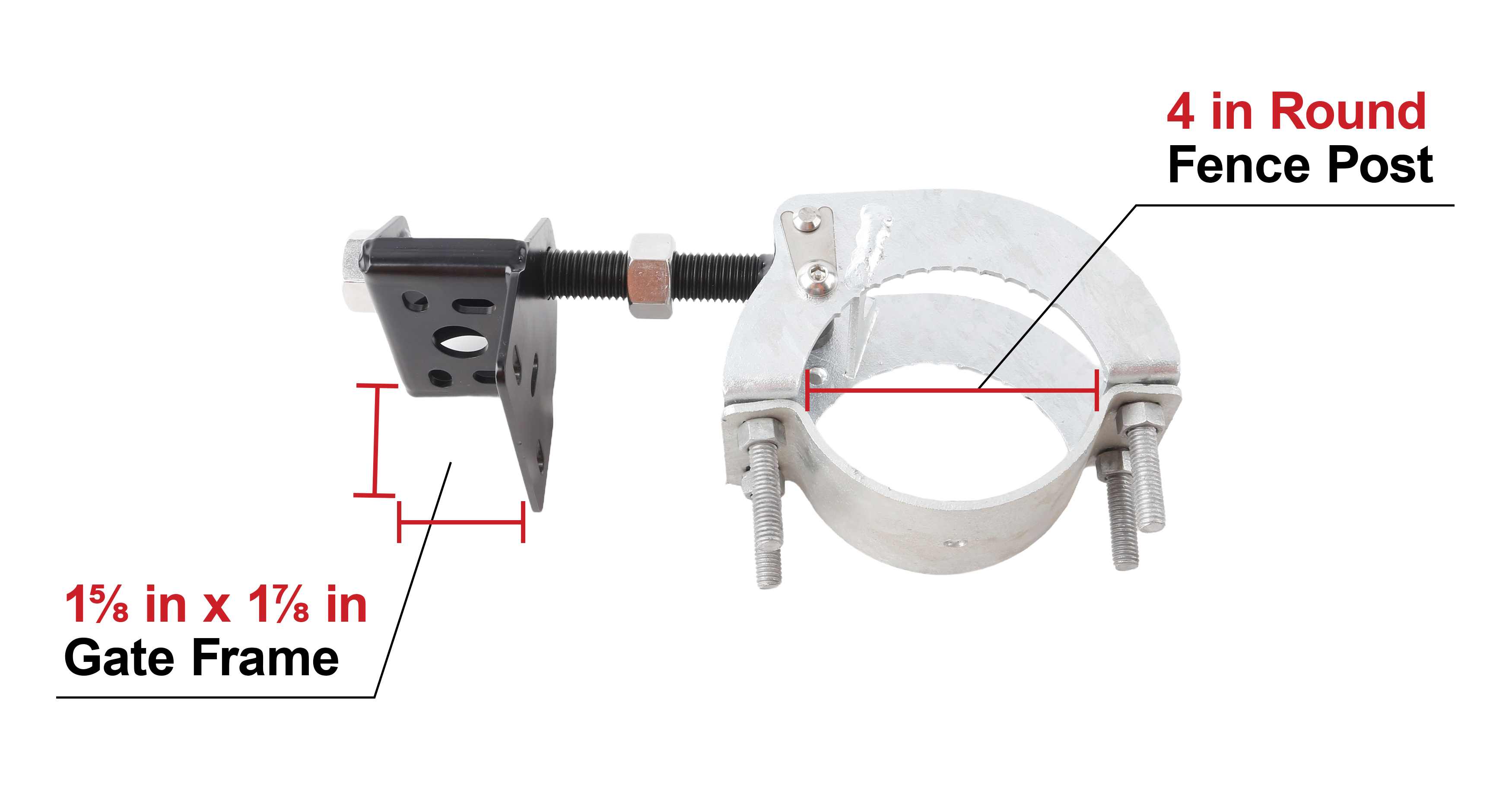

• Fits Round Post: 4"
• Fits Gate Frame Size: 1 5/8" to 1 7/8"
• T-Rod Size: 3/4"
• Gage: 10
• Metal Type: Hot-Dipped Galvanized Steel

Ornamental Square Gate Hinge Types

Hinge Type	Weight Rating	Swing Range	Overview	Image
Square Gate to Round Post Hinge	Medium	180°	Best for residential and light commercial gates, offering easy installation and weather resistance.
Heavy-Duty Square-to-Round Hinge	High	180°	Designed for industrial and high-traffic gates, providing added strength and reduced sagging.
Male / Female Hinges	Medium	90°-180°	Common for chain link gates, allowing easy removal but better suited for lighter-duty use.
Butt / Box Hinge	Low	90°	Ideal for decorative or interior gates where a clean look is preferred over strength.
Cox Hinge	High	90°-180°	Weld-on hinge built for heavy industrial or farm gates requiring maximum durability.
Bulldog Hinge	Very High	90°-180°	Heavy-duty hinge for high-security gates, built to handle extreme weight and prevent sagging.
